Product Description:

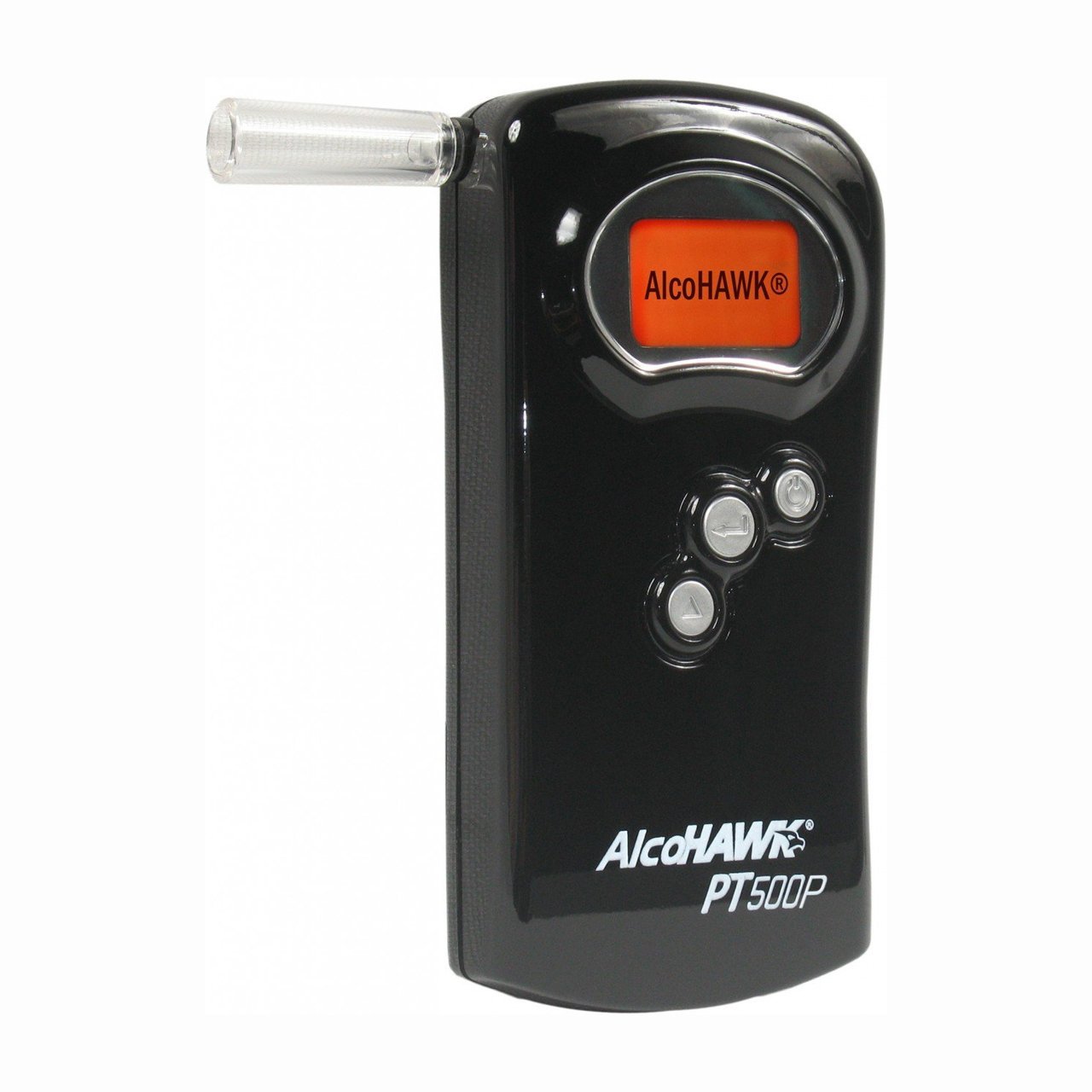

The AlcoHAWK PT500  is a patented fuel cell breathalyzer that incorporates the PT Core™ fuel-cell sensor to virtually eliminate false positives and offer enhanced accuracy over traditional semi-conductor sensors.

The simple menu-driven operation allows you to quickly and accurately check for alcohol up to 0.400% BAC (5 times the limit of 0.080% BAC).

PT Core Fuel-cell Sensor Technology: The 2nd generation PT Core sensor is an exciting new technology available in the AlcoHAWK PT Pro models (Same as the police use).

This new proprietary sensor technology incorporates an electro-chemical fuel-cell detection system. PT Core Technology offers many advantages over semi-conductor based technologies such as:

  • Better accuracy! The AlcoHAWK PT500 is a DOT/NHTSA Conforming Breath Alcohol Screener. This unit is also FDA 510K approved.
  • Less chance of getting false positives from interfering substances such as ketones which can be seen in conditions such as diabetes or people on fad diets
  • Improved sensor life- The PT Core™ sensor is designed to be robust and last for thousands of tests.

AlcoHAWK PT500 Pro Kit
amazing_tech_award.gif advpressurechecktech.jpg pt_core_tech.jpg

Advanced Features of the AlcoHAWK PT500

  • Easy-to-Read LCD Display: The AlcoHAWK PT500 offers a large, easy-to-read LCD display to make the unit the most informative and understandable breathalyzer on the market.
  • Adjustable Blowing Time: The AlcoHAWK PT500 is the first breathalyzer that allows you to control the blowing time. The blowing time may be adjusted for testing subjects with poor lung capacity, such as a smoker, or for testing subjects with a large lung capacity, such as a high-endurance runner. This makes the AlcoHAWK PT500 ideal for accurate and reliable testing of a variety of individuals. The AlcoHAWK PT500's blowing time is adjustable from 3 to 8 seconds.
  • Temperature Display: The AlcoHAWK PT500 constantly displays the ambient temperature during use to help you operate the unit during its optimal temperature range of 50° - 104° F (10° - 40° C).
  • Alarm Point: The unit will read “High” if the BAC reading exceeds the alarm point setting. The default setting is 0.020% BAC. You can change the alarm point from between 0.020%-0.080% BAC.
  • Warning Level Indicator: The PT500 features an audible and visual warning when a subject's BAC surpasses the adjustable BAC alarm point.
  • Pressure Scan Sensor: Ensures that the user blows with enough force to start a test and also ensures that they continue to blow through the unit throughout the entire test.
  • Convert Units: Use this option to change the unit of alcohol concentration shown for tests. You can choose between %BAC (U.S.A), g/L, or ‰BAC. The default setting is %BAC (U.S.A), the U.S.A standard.
  • Test Counter: Keep track of the number of tests run on the unit.

Prism Advanced Fuel-Cell Sensor Technology That's In All Of Our Fuel-Cell Models. The Image Below Shows How The Fuel-Cell Sensor Works and Why It Is So Accurate, All Of Your Breath Is Pumped Into The Sensor!

Technical Specifications

  • Sensor Accuracy: ± 0.005% BAC at 0.100% BAC
  • Battery Life: 200-300 tests
  • Weight: 3.6 oz without batteries;5.2 oz with batteries
  • Dimensions: (HxWxD) 5” x 2.63” x 1.25”
  • Power Supply: Two (2) AA Batteries
  • Sensor Accuracy: ± 0.005% BAC at 0.100% BAC
  • Warm-UP Time: 10-20 seconds
  • Blowing Time: 5 seconds
  • Recovery Time: 5-10 seconds
  • Operating Temperature: 10 - 40°C (50 - 104°F)
  • Detection Range: 0.000 - 0.400% BAC (5 times the limit of 0.08%)
  • Pressure Scan Sensor: Ensures that the user blows with enough force to start a test and also ensures that they continue to blow through the unit throughout the entire test
  • Warranty: 1 Year Warranty through AlcoTester.com

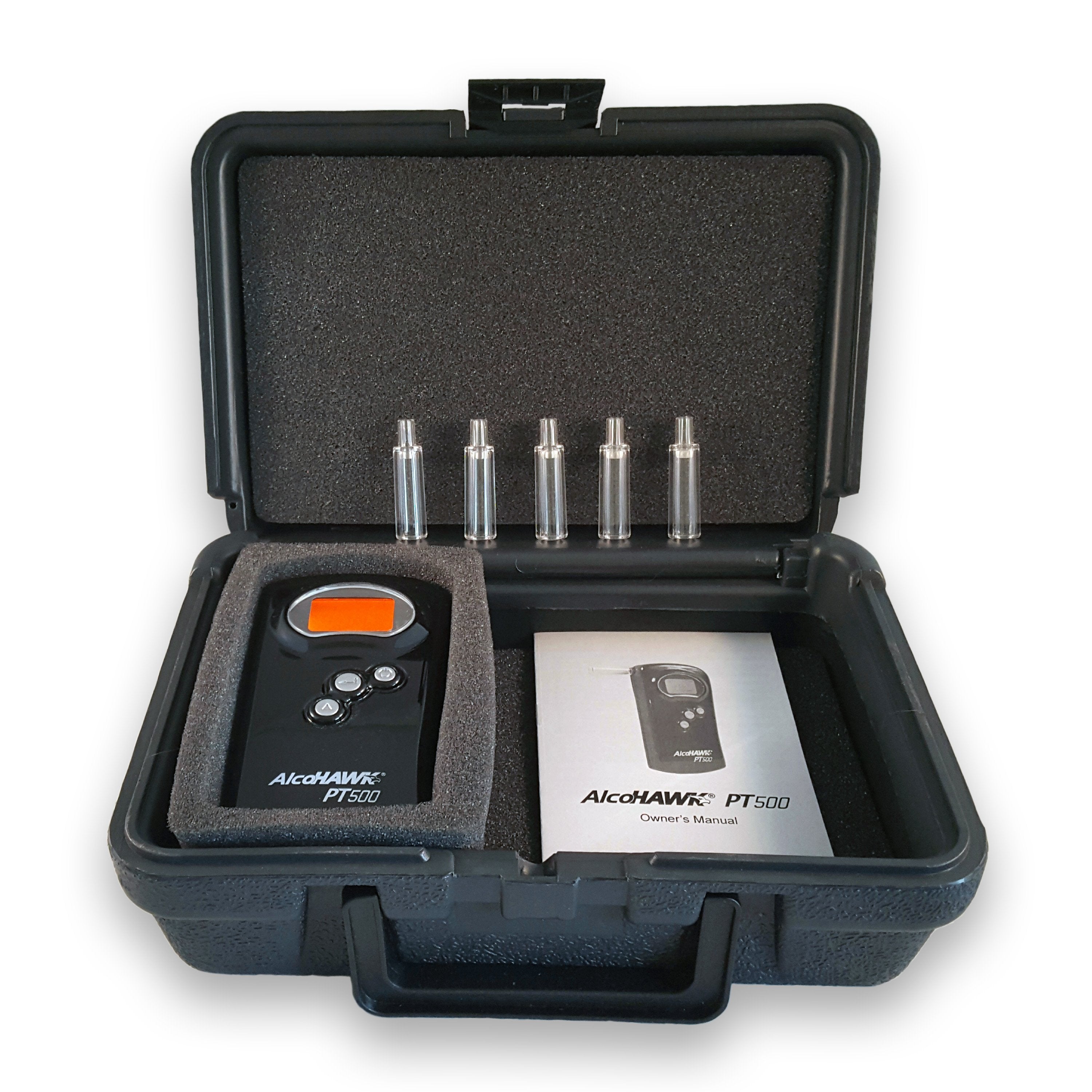

The AlcoHAWK PT500 Professional Kit includes:

  • AlcoHAWK PT500 with upgraded Professional Fuel-Cell Breathalyzer (Same as the police use.)
  • Owner's Manual
  • Quick Start Guide
  • FREE Professional Hard Case With Foam Protection
  • 5 FREE Individually Wrapped Mouthpieces
  • FREE Batteries
  • FREE One year warranty through AlcoTester.com!
  • FREE 24/7/365/Service By Phone, No other breathalyzer company provides this service!
  • Designed And Assembled In The United States!

Deluxe hard-shell carrying case included FREE ($39.99 Value). This case will hold everything included with the unit including up to 100 mouthpieces.


How to use the AlcoHAWK PT500




This unit is Tested and certified by all of the following organizations:
US Department of Transportation US Food and Drug Administration National Highway Traffic Safety Administration United States Coast Guard
